certified quality
Simplifies your work: Improved accessibility in confined working situations such as in installation boxes due to narrow design.
Saves time: Stripping of coaxial cable in only one work step with fixed dimensions and length stop.
Saves space: Compact tool with all functions for the processing and assembly of coaxial cables with F-connector.
Application: For incremental stripping of all commonly used coaxial cables (e.g. antenna and transmission cables) with 6 – 8 mm outer diameter.
For the assembly or disassembly of F-screw connectors.

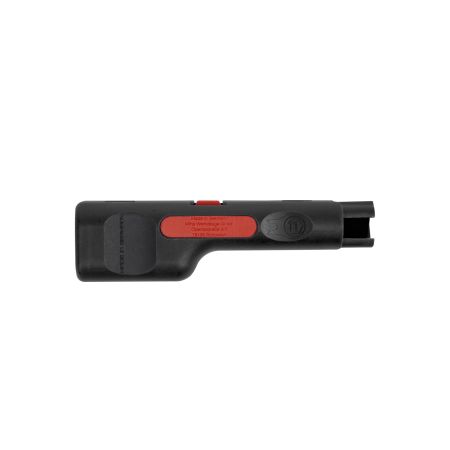

Several work steps are required when processing a coaxial cable with F-screw connector. The Wiha stripping and assembly tool offers the user all the necessary functions in one compact tool. Precisely fitting stripping of coaxial cables with an outer diameter of 6 to 8 mm can be carried out in just one work step. The stripping is performed quickly and in a space-saving manner by means of multiple rotary movements using two pairs of blades positioned opposite each other. The already adjusted stripping dimension is designed for common F-screw connectors. In the next step, the integrated gripping jaws can be used to screw F-connectors onto the already stripped cable. Then the open hexagon SW11 ensures easy assembly or disassembly of the F-connector. The hexagon offers very good accessibility and is easy to operate, especially in confined work environments. For safe and space-saving storage, the tool can be locked in a closed position by means of a slide.
Need any help?
Contact us for further information.
RELATED PRODUCTS
-

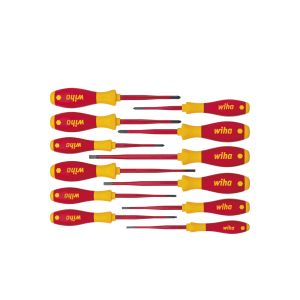

Wiha Screwdriver set SoftFinish® electric slimFix assorted 12-pcs. (41003)As low as €113.04 excl. vat Regular Price €125.60 -10%
-
Wiha slimBit electric bit set Slotted, Phillips 7-pcs. incl. SlimBit box (43159)As low as €41.31 excl. vat Regular Price €45.90 -10%
-
Wiha Automatic crimp tool For wire-end sleeves square crimping with rotating crimping head 193 mm (45223)As low as €171.72 excl. vat Regular Price €190.80 -10%
-
Wiha Torque screwdriver with key handle TorqueFix® Key permanently pre-set torque limit 0.5 Nm (38616)As low as €72.45 excl. vat Regular Price €80.50 -10%
-

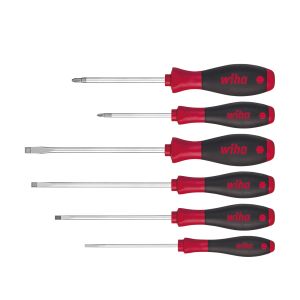

Wiha Screwdriver set SoftFinish® Slotted, Pozidriv 6-pcs (07153)As low as €38.70 excl. vat Regular Price €43.00 -10%
-

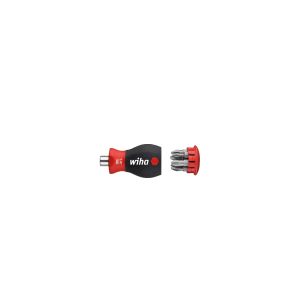

Wiha Screwdriver with bit magazine magnetic Pozidriv, Phillips with 6 bits, Stubby, 1/4" (33741)As low as €14.49 excl. vat Regular Price €16.10 -10%
-
Wiha Screwdriver with LiftUp 25 magnetic bit magazine assorted with 12 bits, 1/4" (38605)As low as €34.29 excl. vat Regular Price €38.10 -10%
-
Wiha XLSelector Y bit set, 25 mm Phillips, Pozidriv, TORX®, 32-pcs., 1/4" C6,3 (41832)As low as €53.73 excl. vat Regular Price €59.70 -10%
-
Wiha MagicRing® hexagonal ball end, 14-pcs. in inch design, matt chrome-plated in blister pack (43852)As low as €53.10 excl. vat Regular Price €59.00 -10%
-
Wiha FibreBuzz® soft-faced hammer dead-blow, very hard with replaceable hammer face 40, 320 mm (44598)As low as €46.26 excl. vat Regular Price €51.40 -10%
-
Wiha Screwdriver set SoftFinish® electric Slotted, Phillips 6-pcs. (00833)As low as €42.66 excl. vat Regular Price €47.40 -10%
-
Wiha Interchangeable blade Hex for torque screwdriver with T-handle 3.0 mm (28746)As low as €9.90 excl. vat Regular Price €11.00 -10%
-
Wiha Electronic diagonal cutters wide, pointed head without bevelled edge 130 mm, 5 1/2" (27391)As low as €19.71 excl. vat Regular Price €21.90 -10%
-

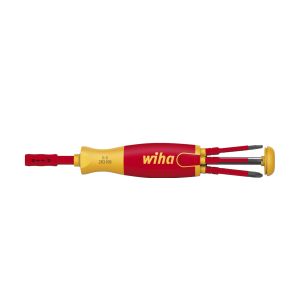

Wiha Screwdriver with bit magazine LiftUp electric Slotted, Pozidriv, PlusMinus/Pozidriv with 6 slimBits (41235)As low as €60.93 excl. vat Regular Price €67.70 -10%
-
