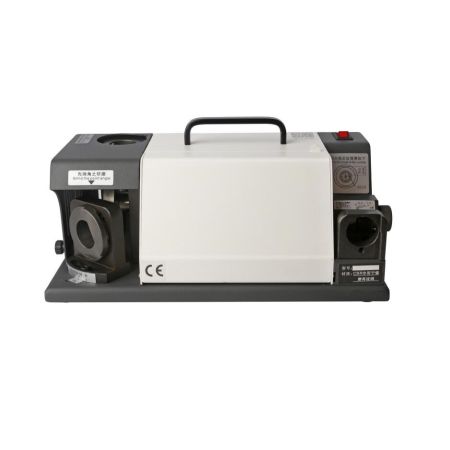

Sharpening machine for twist drills according to DIN 1412 form N and C from diam. 3 to 32 mm with CBN grinding wheel for HSS
Sharpening machine for twist drills according to DIN 1412 form N and C from diam. 3 to 32 mm with CBN grinding wheel for HSS
Sharpening machine for twist drills according to DIN 1412 form N and C from diam. 3 to 32 mm with CBN grinding wheel for HSS
Sharpening machine for twist drills according to DIN 1412 form N and C from diam. 3 to 32 mm with CBN grinding wheel for HSS
As low as
€1,936.50
excl. vat
In stock
Only %1 left
Shipped in 24h-48h
Guaranteed,
certified quality
certified quality
Electronic invoicing
Datasheet
Technical description
- Supplied CBN (cubic boron nitride) grinding wheel for HSS bits
- Option to install SDC (synthetic diamond) grinding wheel for MD bits (optional)
- Excellent quality sharpening, accuracy +/- 0.02 mm
- Sharpening angle adjustable from 90/95° to 135/140° depending on the model
- Tip core reduction (self-centering or split point sharpening)
- Collet chuck equipped with ball bearings
- Sharpening housing on ball bearing
- Simple and fast to use
- Versions for drills diam. 3 to 13 mm, diam. 3 to 20 mm diam.12 to 26 mm and diam.3 to 32 mm (this last version has 2 grinding wheels installed on the sharpening machine)
- 220-230 volts 50 Hz power supply with protection fuse
- CE standards and quick user guide
