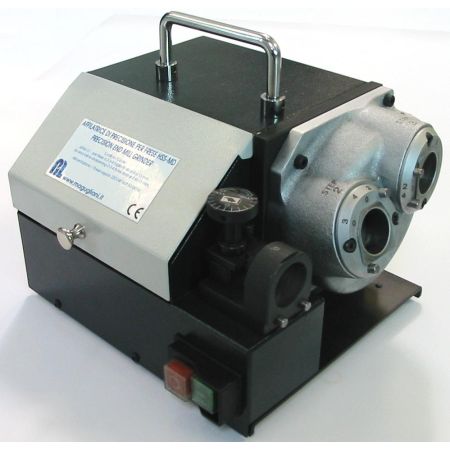

Sharpening machine for 2 3 4-cutter end mills from diam. 4 to 13 mm with two carbide SDC grinding wheels
Sharpening machine for 2 3 4-cutter end mills from diam. 4 to 13 mm with two carbide SDC grinding wheels
Sharpening machine for 2 3 4-cutter end mills from diam. 4 to 13 mm with two carbide SDC grinding wheels
Sharpening machine for 2 3 4-cutter end mills from diam. 4 to 13 mm with two carbide SDC grinding wheels
As low as
€1,800.00
excl. vat
In stock
Only %1 left
Shipped in 24h-48h

Guaranteed,
certified quality
certified quality

Electronic invoicing
Datasheet
Technical description
- For 2-cut - 3-cut - 4-cut carbide or HSS end mills for finishing
- (by replacing the grinding wheel with the optional CBN one).
- End mills from diam. 4 to 13 mm and from diam. 12 to 25 mm
- Supplied SDC* (synthetic diamond) grinding wheel for carbide end mills
- Option to install CBN (cubic boron nitride) grinding wheel for HSS end mills (optional)
- Excellent quality sharpening, accuracy +/- 0.02 mm
- Sharpening adjustment: brighten cutting edge or sharpen
- Quick and easy to use
- Grinding wheel position adjustment to resume wear
- Power supply 230 volts 50 Hz, CE regulation and quick start guide
