Support materials:

• Installation of FBS II concrete screws as connectors between an existing concrete layer and a new reinforcing concrete layer.

Advantages:

• Fast: halves installation times compared to traditional methods, allowing the overall cost of the work to be lowered.
• Guarantee of precision: the tool, when coupled with Fischer FBS II US screws, ensures perfect depth. of inserting the connector, ensuring compliance with the ETA and eliminating human error.
• Simple: when the screw is at the right height the tool begins to spin, warning the installer that the installation is incorrect. complete.
• Not binding: the standard attack is compatible with most power tools on the market.
• Less energy: the special operation of the tool allows you to save screwing and unscrewing operations, saving battery to do more. applications.
• Patent Pending.

Recommended applications:

• Galvanized steel

Operation:

• Drill the support according to the pattern indicated by the designer. NB the hole cleaning phase can be harmful. be skipped if the hole is more deep compared to the depth of screw insertion of at least 3 times its diameter.
• Manually insert the FBS II concrete screws into the holes.

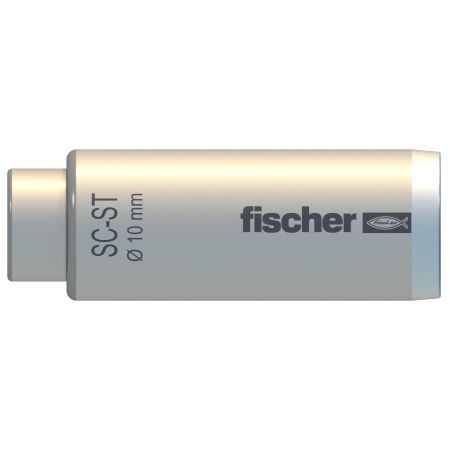

• Install the SC-ST tool on an impact wrench with adequate power.
• Position the tool over the head of the screw and screw, accompanying the tool with a light axial push.
• Proceed with the screwing until the tool, once it comes into contact with the existing concrete, begins to spin.
• Repeat the process for the subsequent screws/connectors until the job is complete.

Technical details:

• Suitable for: FBS II 8
• Suitable for: FBS II 8
