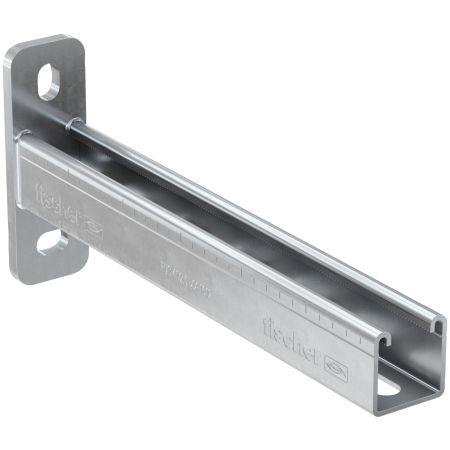

Cantilevered shelves made with profiles from the FUS range
Cantilevered shelves made with profiles from the FUS range
As low as
€11.84
excl. vat
In stock
Only %1 left
Shipped in 3 / 4 working days on "Available" items.
15 / 20 working days on "Limited availability" item.
15 / 20 working days on "Limited availability" item.
![](https://www.hello-tools.com/media/wysiwyg/garanzia-icon.png)
Guaranteed,
certified quality
certified quality
![](https://www.hello-tools.com/media/wysiwyg/invoice.png)
Electronic invoicing
Code
Material
Length
Pieces
Pack
Availability
Price and quantity
Code
77359
4006209773598
Material
Cold galvanized Length
300 mm Pieces
1
Pack
1
Availability:
PRODUCT AVAILABLE
Code
77361
4006209773611
Material
Cold galvanized Length
450 mm Pieces
1
Pack
1
Availability:
PRODUCT AVAILABLE
Code
77363
4006209773635
Material
Cold galvanized Length
600 mm Pieces
1
Pack
1
Availability:
PRODUCT AVAILABLE
Code
77365
4006209773659
Material
Cold galvanized Length
750 mm Pieces
1
Pack
1
Availability:
PRODUCT AVAILABLE
Code
504315
4048962062366
Material
Cold galvanized Length
1000 mm Pieces
1
Pack
1
Availability:
PRODUCT AVAILABLE
Code
504317
4048962062373
Material
Cold galvanized Length
750 mm Pieces
1
Pack
1
Availability:
PRODUCT AVAILABLE
Code
504319
4048962062380
Material
Cold galvanized Length
1000 mm Pieces
1
Pack
1
Availability:
PRODUCT AVAILABLE
Code
537207
4048962253733
Material
Cold galvanized Length
200 mm Pieces
1
Pack
1
Availability:
PRODUCT AVAILABLE
Code
537208
4048962253740
Material
Cold galvanized Length
300 mm Pieces
1
Pack
1
Availability:
PRODUCT AVAILABLE
Code
537209
4048962253757
Material
Cold galvanized Length
450 mm Pieces
1
Pack
1
Availability:
PRODUCT AVAILABLE
Datasheet
Technical description
Support materials:
- The FCA shelf allows for quick and simple installation of plumbing pipes, electrical conduits or air ducts along the wall.
Advantages:
- The fire resistance ratio in accordance with MLAR/EN13501 guarantees safety in operation tested by an independent body.
- The wide range of lengths allows for ideal adaptation to various applications.
- The shelf's solid base plate provides a secure hold for load-bearing structures.
- The slots of the base plate, rotated 90° with respect to each other, allow the shelf to be easily aligned.
- The knurling molded into the profile provides a secure hold of the nut for high shear load values. E.g. applications with vertical profiles.
Properties
- Material: S235 JR steel (material no. 10037) according to DIN EN 10025
- Galvanizing: Cold galvanizing, min 13 µm
