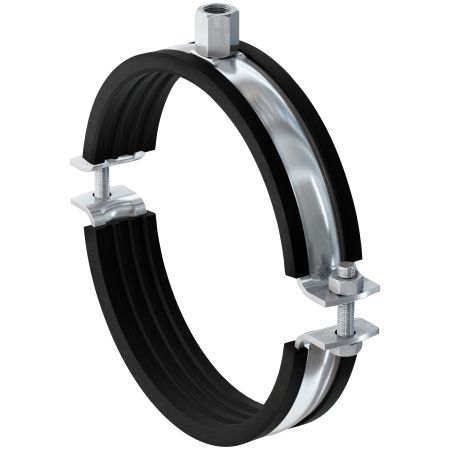

Pipe collar with soundproofing gasket for medium/heavy loads with metric connection
Pipe collar with soundproofing gasket for medium/heavy loads with metric connection
As low as
€81.08
excl. vat
In stock
Only %1 left
Shipped in 3 / 4 working days on "Available" items.
15 / 20 working days on "Limited availability" item.
15 / 20 working days on "Limited availability" item.
![](https://www.hello-tools.com/media/wysiwyg/garanzia-icon.png)
Guaranteed,
certified quality
certified quality
![](https://www.hello-tools.com/media/wysiwyg/invoice.png)
Electronic invoicing
Code
Length
Height
Thread
Pieces
Pack
Availability
Price and quantity
Code
504594
4048962063721
Length
480 mm Height
213 mm Thread
M16 Pieces
1.0
Pack
1
Availability:
PRODUCT AVAILABLE
Code
504595
4048962063738
Length
496 mm Height
221 mm Thread
M16 Pieces
1.0
Pack
1
Availability:
PRODUCT AVAILABLE
Code
504596
4048962063745
Length
533 mm Height
240 mm Thread
M16 Pieces
1.0
Pack
1
Availability:
PRODUCT AVAILABLE
Code
504597
4048962063752
Length
586 mm Height
266 mm Thread
M16 Pieces
1.0
Pack
1
Availability:
PRODUCT AVAILABLE
Code
504598
4048962063769
Length
632 mm Height
290 mm Thread
M16 Pieces
1.0
Pack
1
Availability:
PRODUCT AVAILABLE
Datasheet
Technical description
Support materials:
- Fixing of medium-heavy pipes with threaded rods or screws.
Advantages:
- The high tested loads guarantee the safe operation of the FRSM collar.
- The connection nut with combined M10/M12, M12/M16 or M16 thread allows for optimized mounting choices.
- From ⌀124 mm it is It is possible to install the collar with 2 threaded rods, e.g. for fixing cast iron drainage pipes to the ceiling.
- The two screws allow easy adjustment according to the external diameter of the pipe.
- The safety feature of the screws ensures hassle-free installation.
Properties
- Material: DD11 steel (material no. 1.0332) according to DIN EN 10111
- Galvanizing: Cold galvanizing, 5 - 9 µm
- Connection nut: M 10 / M 12 = SW 17, M 12 / M 16 = SW 22, M 16 = SW 24
- Locking screw: cross flat head screw up to 4", over 4" hex head screw with nut
- Acoustic insulation insert material:EPDM; chlorine-free; silicone-free
- Temperature range: -50 °C ÷ +110 °C
- Hardness: 45 ± 5° Shore A
- Fire behavior: DIN 4102: Class B2
