Support materials:

Applications

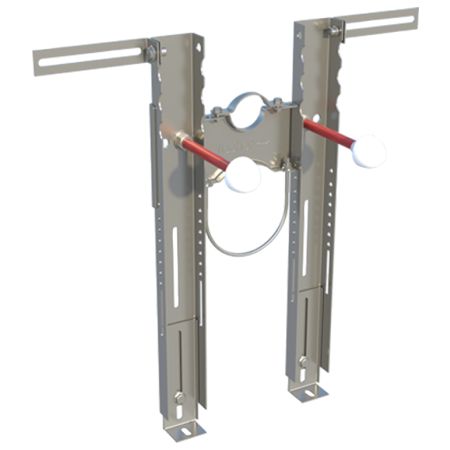

• 42898: WC and bidet suspended on load-bearing walls.

Advantages:

• The packages are complete with supports and collars to fix the intake and exhaust components.
• For bidet installation, the height-adjustable pre-drilled grid is suitable for all flanged fittings that can be oriented as needed.
• Collar for soundproof bidet drain.
• The box is complete with BUAK eccentric bushings, M12 threaded rods and protections.
• Distance of M12 threaded rods at 180 mm or 230 mm..
• Threaded rods 180 mm long.
• Frame tested at 400 kg according to UNI EN 997 (WC) and UNI EN14528 (bidet).
• Premium can be used with any type of cassette.
• Adjustable feet from 0 to 13 cm and can also be used horizontally to widen the support base.
• Claws can be used laterally or in depth. for applications in front of the wall.
• Claws can be used laterally or in depth. for applications in front of the wall.
• Shaped spars for better grip of the mortar.

Recommended applications:

• Solid clay brick
• Semi-solid (vertically perforated) clay brick

Operation:

• Insert the M12 bars with the red protection into the appropriate holes on the frame at a distance of 180 mm or 230 mm.
• Adjust the feet of the bracket to the necessary height.
• In the case of bidet installation, screw the pre-drilled grid and bend the tab in the center to install the threaded bar that supports the collar.
• Install in the wall and roughcast.
• Remove the red protection from the bar, install the sanitary fixture and secure the nuts, cover with BUAK bushings if necessary.
