Support materials:

• WC and bidet suspended on load-bearing walls

Advantages:

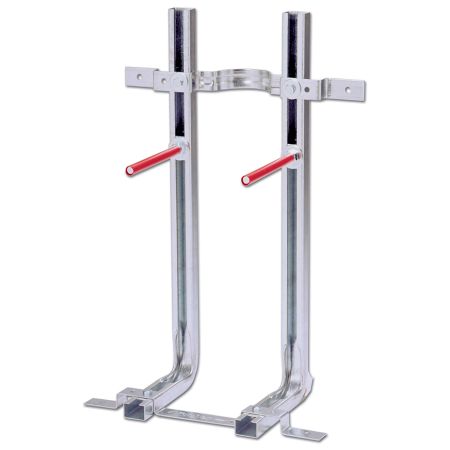

• LC plus with shaped crosspiece for flushing the cistern.
• L plus with straight crosspiece for bidet or WC use with lateral positioning of the cistern.
• Complete kit of BUAK eccentric bushings, M12 bars and nuts.
• Pre-assembled system with 180 mm center distance and with the possibility of quick adjustment up to 230 mm.
• M12 bars 180 mm long.
• Tested at 400 kg according to UNI EN 997 and UNI EN 14528 regulations.
• Application with any built-in cistern.
• Floor support base without protruding screws.

Recommended applications:

• Solid clay brick
• Semi-solid (vertically perforated) clay brick

Operation:

• Insert the M12 bars with the red protection.
• Fix the bracket to the necessary center distance.
• Install in the wall and roughcast.
• Remove the red protection, install the sanitary fixture and secure the nuts covering with BUAK bushings.
