Support materials:

For the thermally insulated fixing of:

• Awnings
• Sheds
• Balcony railings
• Console
• Air conditioners
• Satellite dishes

Advantages:

• The system is approved for high loads in a wide range of materials, when it is used in combination with FIS V and FIS Green injection resins. This allows for secure fixing.
• Usable lengths from 60 to 295 mm can be covered with a TherMax.

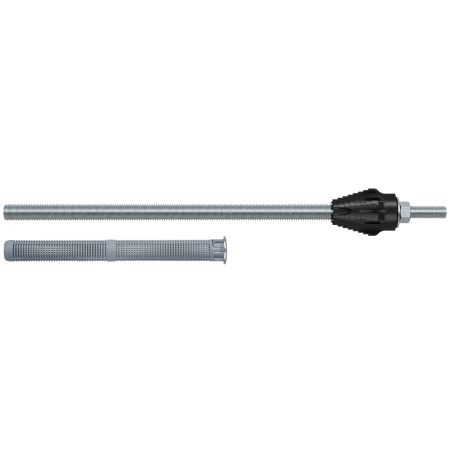

• The plastic cone creates a thermal barrier between the object to be fixed and the inside of the support, creating an energy-optimised fixing.
• The glass fiber reinforced plastic cone forms its seat in the insulating panel, guaranteeing simple and quick installation without the use of special tools.

Recommended applications:

Certified for:

• Cracked and non-cracked concrete
• Solid clay brick
• Solid calcium silicate brick
• Semi-solid (vertically perforated) clay brick
• Semi-solid brick (vertically perforated) in calcium silicate
• Hollow block in lightweight concrete

Also suitable for:

• Autoclaved aerated concrete (cellular concrete)

Operation:

• The TherMax 12 and TherMax 16 are suitable for non-through installations.
• The self-drilling cone, reinforced with fibreglass, makes its home in the insulation by passing through the plaster during installation.
• The insulating cone creates a thermal barrier, minimizing heat losses.
• In the case of resistant plaster (for example thick cement-based plaster) we recommend using the appropriate cutter, included in the package, to cut the plaster.
• Seal the facade at the level of the plaster by filling the annular space between the hole and the cone with the KD ULTRA 60 sealing adhesive and/or with the KD FLEX 20 adhesive sealant.
